P2P Media Loader
Technical Overview

Key components of the P2P network

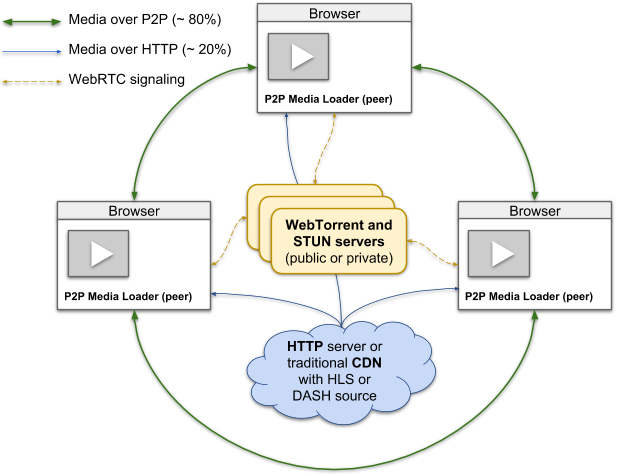

P2P Media Loader network

All the components of the P2P network are free and open-source.

P2P Media Loader is an open-source JavaScript library that uses features of modern web browsers (i.e. HTML5 video and WebRTC) to deliver media over P2P and do playback via integrations with many popular HTML5 video players. It doesn’t require any web browser plugins or add-ons to function.

P2P Media Loader web browser requirements are:

  • WebRTC Data Channels support to exchange data between peers
  • Media Source Extensions or Managed Media Source are required by Hls.js and Shaka Player engines for media playback

STUN server is used by WebRTC to gather ICE candidates. There are many running public servers available on Public STUN server list.

WebTorrent tracker is used for WebRTC signaling and to create swarms of peers that download the same media stream. Few running public trackers are available: https://openwebtorrent.com/, https://tracker.webtorrent.dev/. It is possible to run personal WebTorrent tracker using open-source implementations: bittorrent-tracker, wt-tracker, Aquatic, OpenWebtorrent Tracker.

P2P Media Loader is configured to use public STUN and WebTorrent servers by default. It means that it is not required to run any server-side software for the P2P network to function.

How it works

A web browser runs a video player integrated with P2P Media Loader library. An instance of P2P Media Loader is called peer. Many peers form the P2P network.

P2P Media Loader starts to download initial media segments over HTTP(S) from source server or CDN. This allows beginning media playback faster. Also, in case of no peers, it will continue to download segments over HTTP(S) that will not differ from traditional media stream download over HTTP.

After that P2P Media Loader sends media stream details and its connection details (ICE candidates) to WebTorrent trackers and obtains from them list of other peers that are downloading the same media stream.

P2P Media Loader connects and starts to download media segments from the obtained peers as well as sharing already downloaded segments to them.

From time to time random peers from the P2P swarm download new segments over HTTP(S) and share them to others over P2P.

Web browsers support

  • Chrome
  • Firefox
  • macOS Safari
  • iPadOS Safari (iPad)
  • iOS Safari (iPhone, iOS version 17.1+)
  • Edge
